A community centre is creating a 3D-printed stand for a tablet.

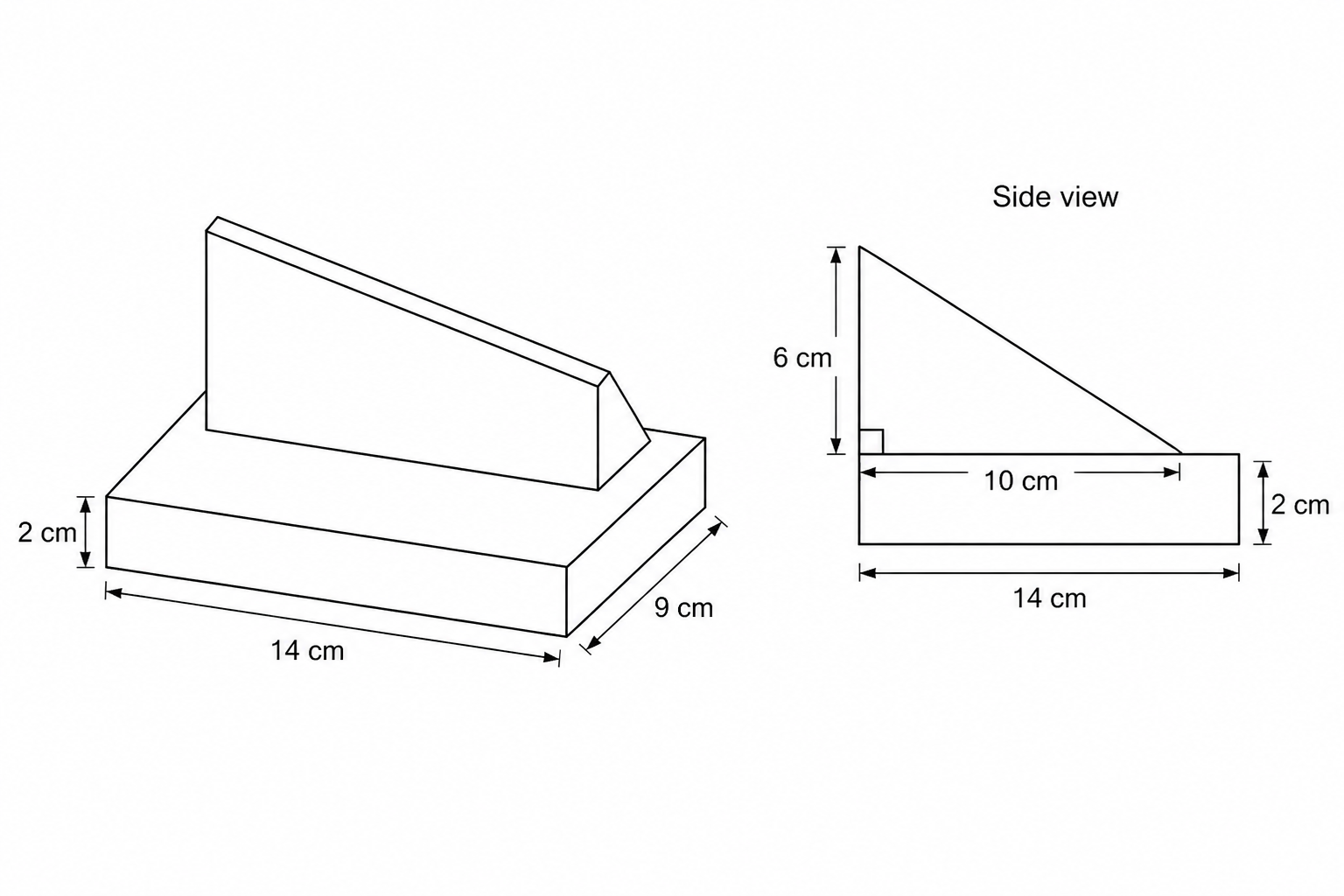

The designer models the stand in a CAD app. The stand is made from two joined solids:
In the side view (lengthwise), the triangular cross-section of the support is a right triangle with:
The support has the same width as the base (9 cm). The support is positioned so that its 10 cm base sits fully on the top of the rectangular base.
The CAD app can automatically calculate volume and can also generate a “slice preview” that shows the cross-section area at a given width.
Describe how you could use the CAD app’s “slice preview” to confirm the cross-section area of the support (triangular prism) at any point across its 9 cm width, and state what that area should be.
